| Cảm biến hình ảnh: | 1280 * 1024 CMOS | Giải mã độ chính xác: | Mã 39 4 triệu |
|---|---|---|---|
| Khả năng tương thích hệ thống: | Linux 、 Android 、 WindowsXP 、 7、8、10 、 MacOS | Mã có sẵn: | In mã 1D, 2D trên giấy hoặc phim hoặc màn hình |
| Chống thấm nước và chống bụi: | Tuân theo IP54 | Dự phòng hiện tại: | 133mA / 0,665W |
| Công việc hiện tại: | 133mA / 0,665w | Làm việc hiện tại (Tối đa): | 175mA / 0,875W |
| Làm nổi bật: | Máy quét mã vạch để bàn,Máy quét mã vạch đa hướng 2d,máy quét mã vạch laser 1d |
||

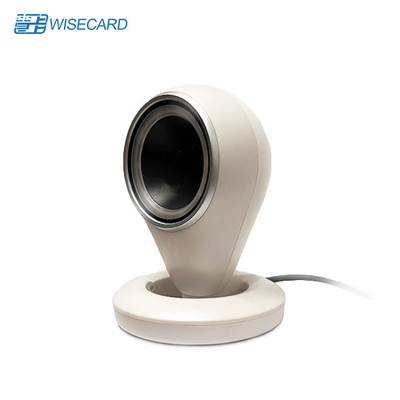

2d Omnidirectional Barcode Scanner Desktop 1d Laser 20lines Scanners Qr Bar Code Reader For Supermarket
Description Of Desktop Scanner
WCT-A3 has high speed recognition, the high frame rate CMOS sensor, customized lens and excellent image algorithm, can quickly identify all kinds of bar codes. WCT-A3 desktop scanner also has strong recognition ability: the use of independent image algorithm and after years of iterative optimization, can smoothly identify a variety of color, high reflection, deformation, fuzzy bar code, while taking into account the high brightness and low brightness mobile phone screen bar code.
Feature Of Desktop Scanner
1. With 1280*1024 CMOS Imaging sensor, which can capture bigger and detailed image.
2. 1DCapacity: EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32 and etc.
3. 5mil code39: 1-15cm
4. UPC-13mil: 1-33cm
Specification Of Desktop Scanner
|
Performance Parameters |
Picture Sensor | 1280*1024 CMOS | |||||||
| Capacity | 1D | EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded | |||||||
| 2D | PDF417,MicroPDF417,MicroQR, Data Matrix,QR,Aztec | ||||||||
| Depth of Field | Tested Code | Minimum | Maximum | ||||||
| 5mil code39 | 1cm | 15cm | |||||||
| UPC-13mil | 1cm | 33cm | |||||||
| 20 mil code39 | 1cm | 40cm | |||||||
| 20 mil QR Code | 1cm | 28cm | |||||||
| System Compatibility | Linux,Android,Windows XP,7,8,10,MACOS | ||||||||
| Decode Accuracy | Code 39 4mil | ||||||||
| Code Available | 1D, 2D Codes printing on Paper or film or screen | ||||||||
| Scan Rate | 30 Fps | ||||||||
| Scan Pattern | Automatic induction continuous scan | ||||||||
| Keyboard support | American-English, French, Italian, German, Spanish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish F, Turkish Q, Greek, Finnish, Belgian (French), British-English | ||||||||
| Barcode language support | Simplified Chinese (win system) | ||||||||
| Invoice function | Support( for China market only(win system) | ||||||||
| Secondary development | Not support | ||||||||
| Barcode output editing | support adding prefix and suffixes, hidden characters | ||||||||
| Symbol Contrast | 20% | ||||||||
| Scanning Angle | Horizontal : ±70° Vertical:±60° Rotated: ±360° | ||||||||
|
Human- computer interaction |
Indicator light | Red & Blue indicator light | |||||||
| Buzzer | Start Tips,Reading code tips | ||||||||
|
Environment Parameters |
Drop | Design to withstand 1.5 M drops to concrete 3 times | |||||||
| Environmental Sealing | IP54 | ||||||||
| Working Temperature | -20-55℃ | ||||||||
| Conserve Temperature | -20-60℃ | ||||||||
| Working Humidity | 5-95% Non-Condensed | ||||||||
| Conserve Humidity | 5-95% Non-Condensed | ||||||||
| Environment Light | 0-70000LUX | ||||||||
|
Physical Parameters |
Net Weight | 372g | |||||||
| Packing Weight | 500g | ||||||||
| Data line length | 180CM(±3CM) | ||||||||
| Host Size(L*W*H) | 104.8*104.8*147mm | ||||||||
| Packing Size(L*W*H) | 180mm*168mm*121mm | ||||||||
| Interface | USB(Drive free), serial port | ||||||||
| working voltage | 5V | ||||||||
|
USB
|
Standby current | 133mA/0.665W | Serial port | Standby current | 357mA/1.785W | ||||
| Working current | 133mA/0.665w | Working current | 357mA/1.785W | ||||||
| Working current(Max) | 175mA/0.875W | Working current(Max) | 358mA/1.79W | ||||||
Application Of Smart POS Terminal
1. Retail
2. Restaurant& hospitality
3. Field services
4. Warehouse &manufacturing
